Fiber Glass

composition〉〈mesh〉〈structure〉〈weight〉-〈warp×weft/OD×ID〉+〈surface

Taking CNG2605×5/176×23VW for example:

Expression of the cloth same as above;

OD: Outside diameter is 176mm

ID: Inside diameter is 23mm

Surface: VW means coated with non woven fabricwax paper[W means plainwax paper; P means coated with black paper; B means black color; R means Red color; CP means Crepe paper]

Size of Fiberglass Disc for Grinding Wheels



No.



OD



ID




No



OD



ID

1

70-80

6.5-10

7

252-254

25.5-26.5

2

95-98

16.5-17

8

295-298

25.5-26.5

3

110-114

22.5-23

9

300-303

25.5-26.5

4

120-124

22.5-23

10

345-349

25.5-26.5

5

145-148

22.5-23

11

350-355

25.5-26.5

6

175-178

22.5-23

12

395-402

30-33

7

220-228

22.5-23

13

498-860

45-180










Note:

1. Tolerance range of OD 1mmtolerance range of ID 0.5mm.

2. Above mentioned sizes are common specifications, special sizes can be produced according to customers’ requirement within OD range 32-1300mm and ID range 7-130mm.

3. According to customers’ requirement, covering materials include plain with wax paper, coating with black paper, non woven fabric and wax paper or with PE.



Physical and Chemical Requirement)


Color

Volatiles Content

(%)

Insolubles

Content

(%)

Resin Content

(%)

Outside

Diameter

(mm)

Inside

Diameter

(mm)

Strength

N/Tex

Storage

Condition

()

Yellow

and

Black



7~13



≤10



26~34



70-860



6.5-180



≥0.35



≤25

production process

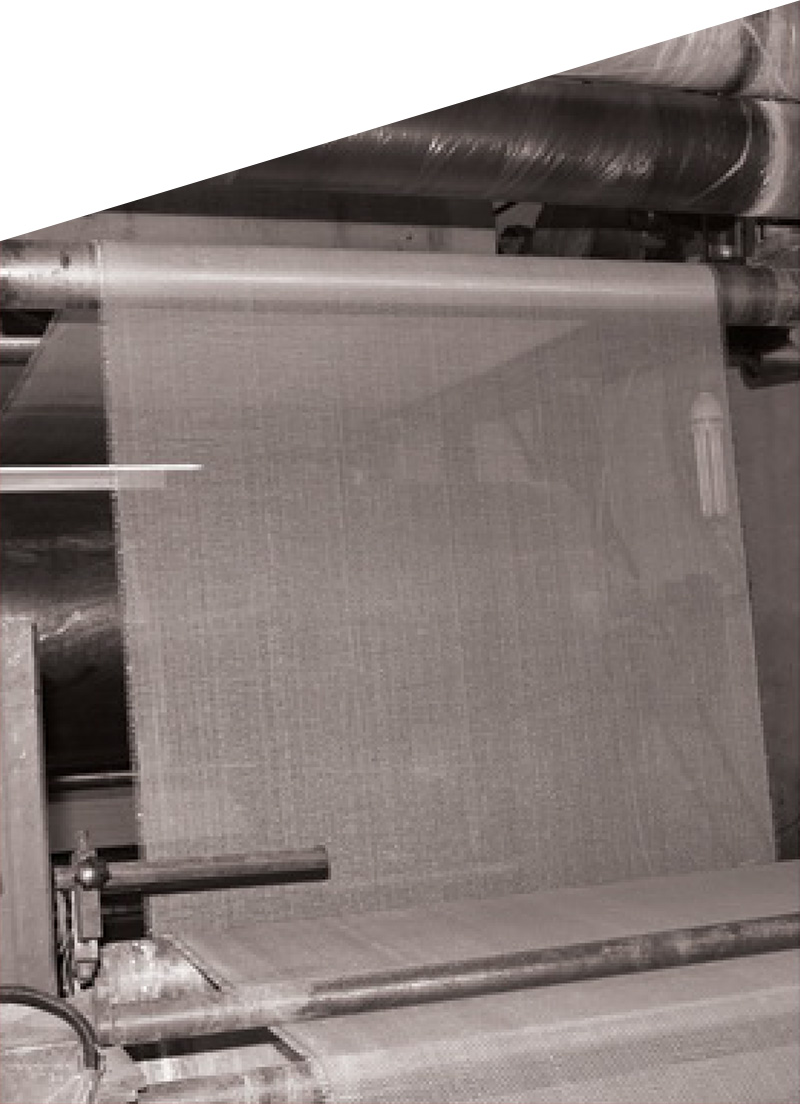

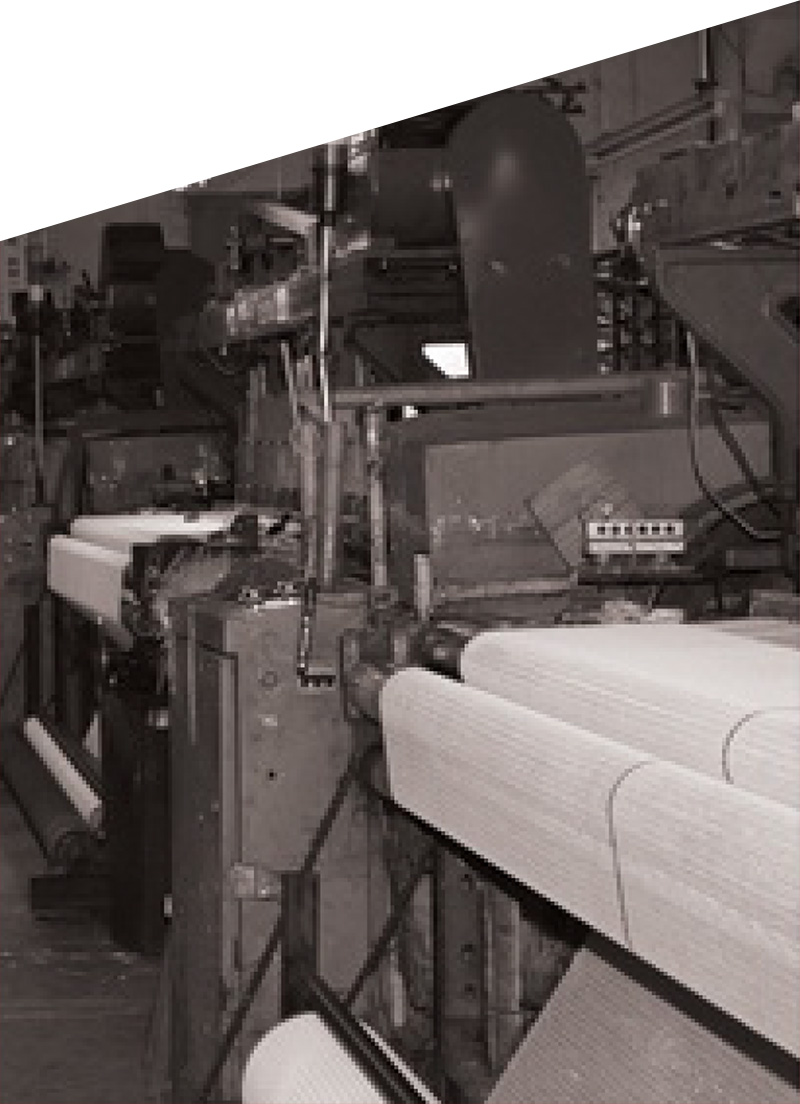

01weaving

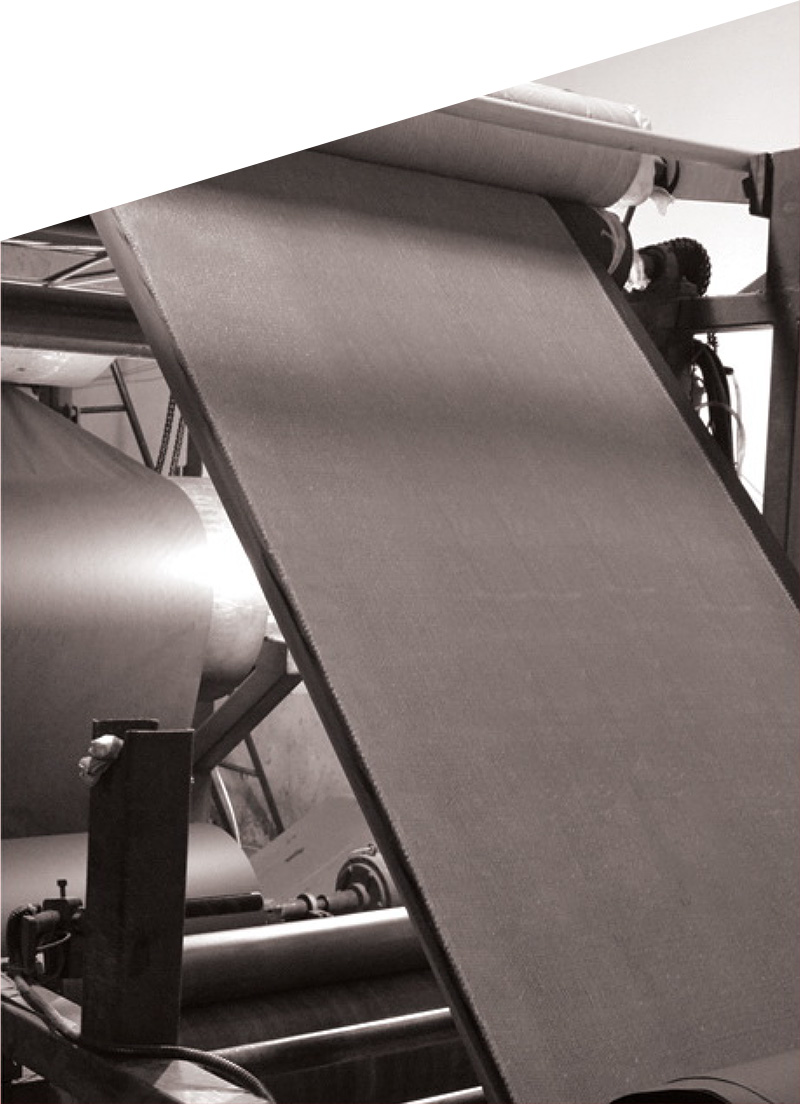

02impregnation

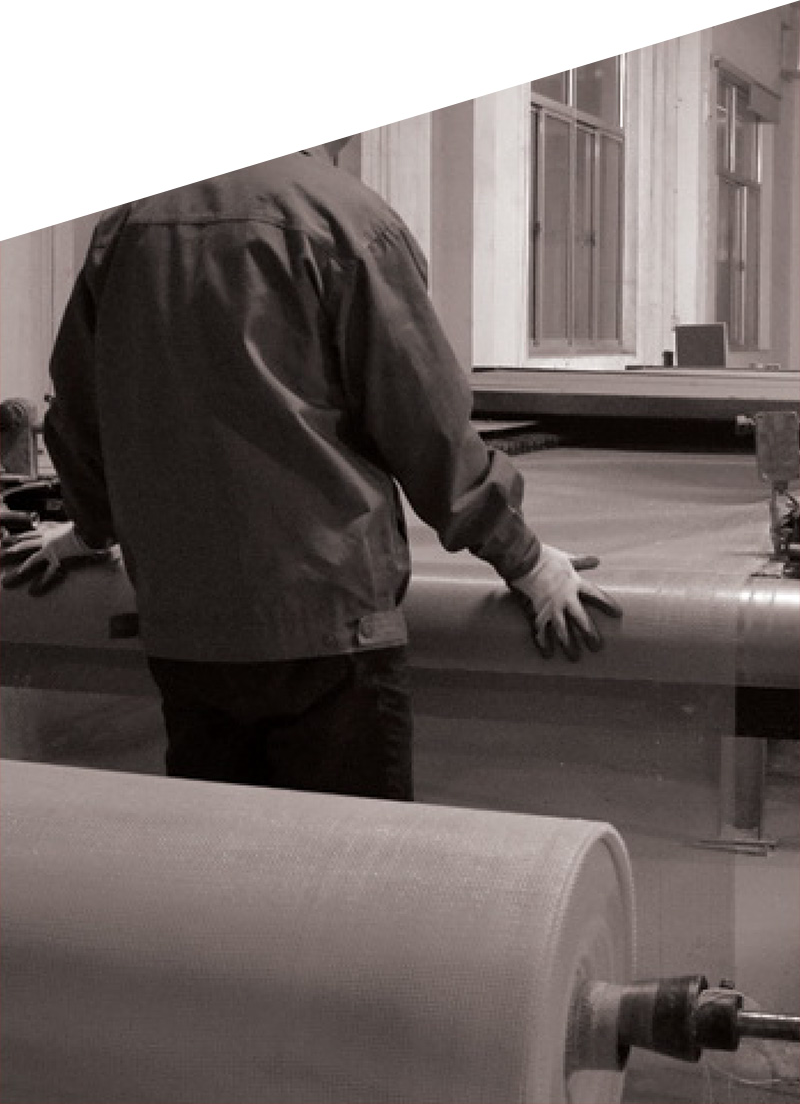

03weft straightening

04paper covering

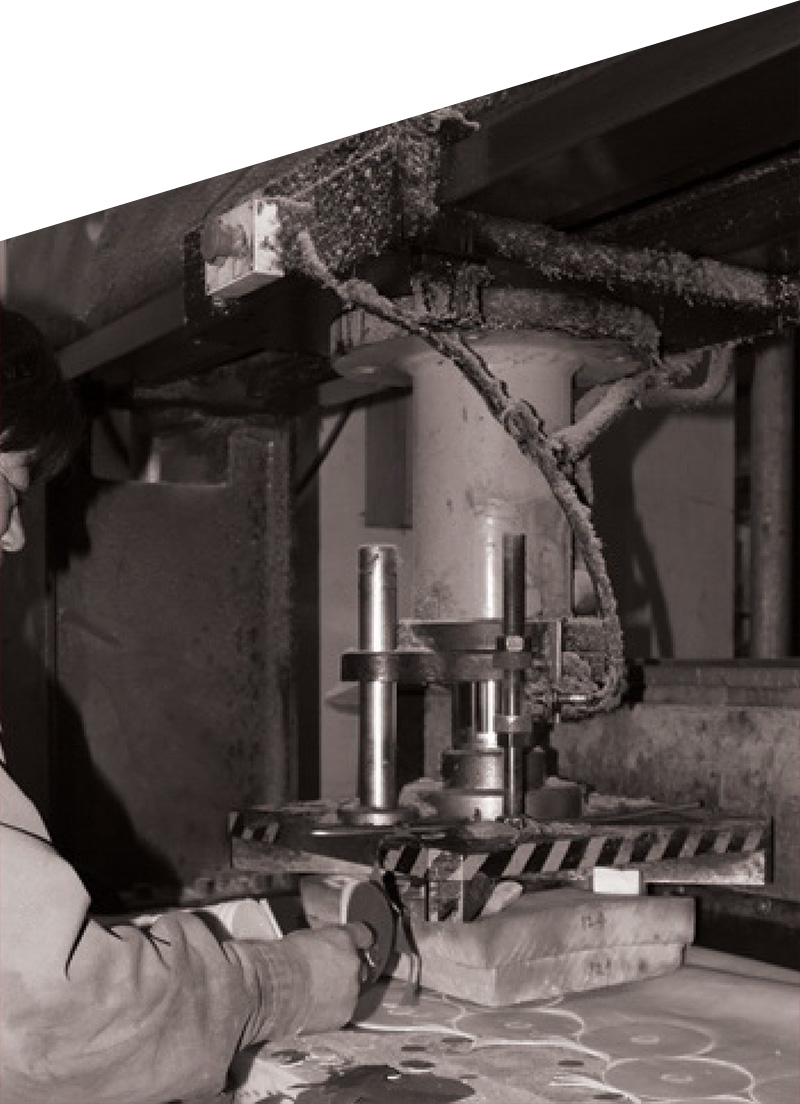

05punching

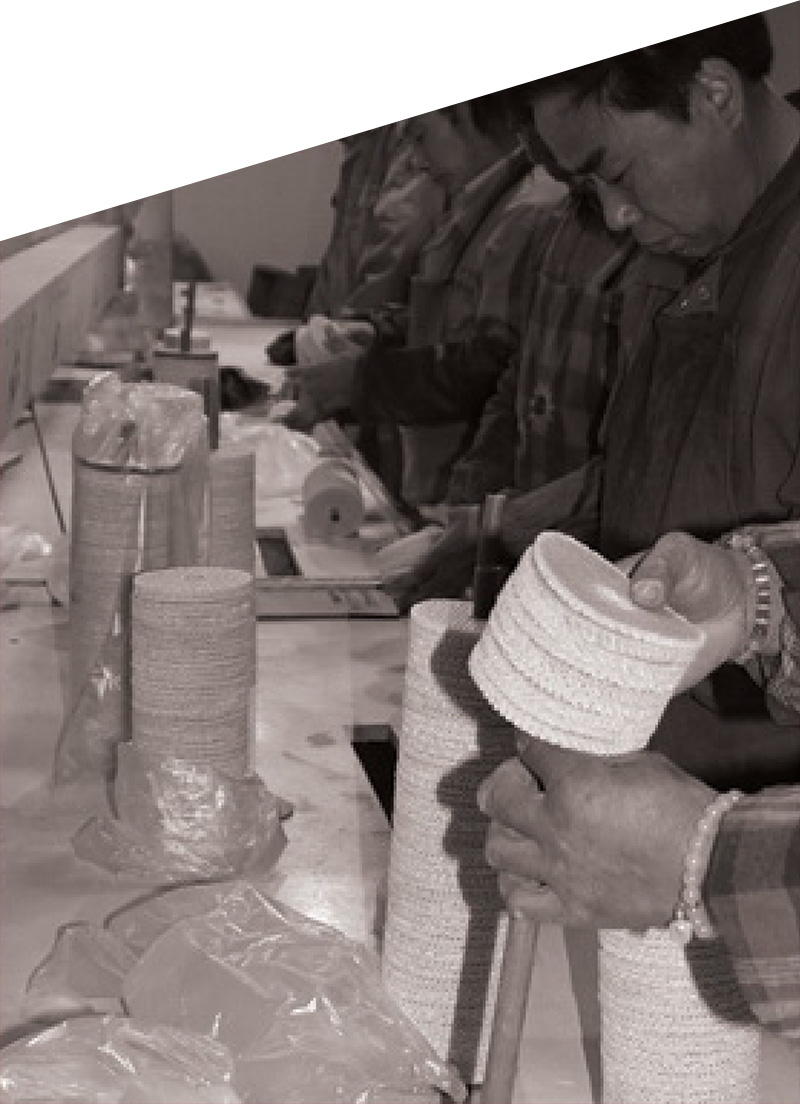

06checking

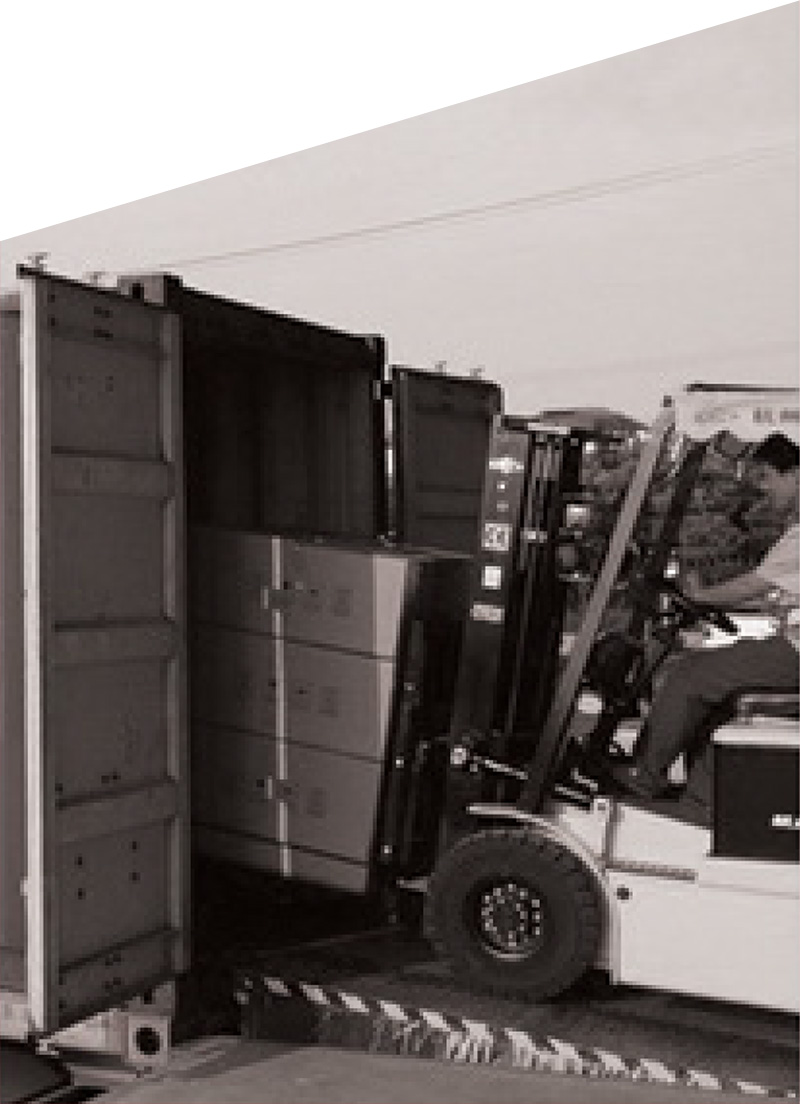

07loading
